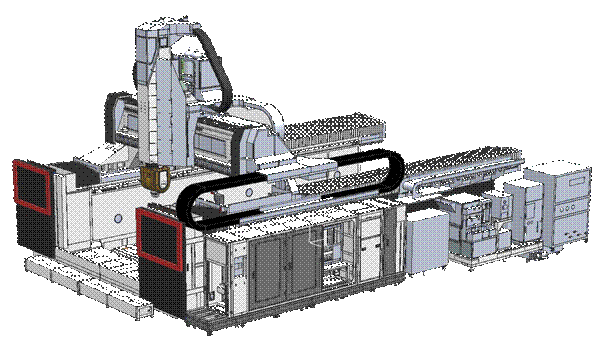

Overall unit with casting
Reduce the errors of manual welding, and Low deformation and High rigidity
All casting design by box-in-box
structure, light weight and increase structure rigidity.
Integrated base casting
High stability, Low deformation, High rigidity.
Double beam design
Double beam, double saddle, four linear guideway support.
Reduce structure and thermal deformation on cutting.
Double saddle design
Double saddle design, and the lengthen and widen saddle, head and beam to reduce
deformation and increase overall rigidity.
High rigidity head
Three linear guide way and one guide way, full covered with saddle.
Octagon structure and whole foundry head.
Tough and rigidity base casting
T-type structure base increase rigidity, and the strength axes design to increase rigidity and stability,
and ensure the accuracy on high speed machining.

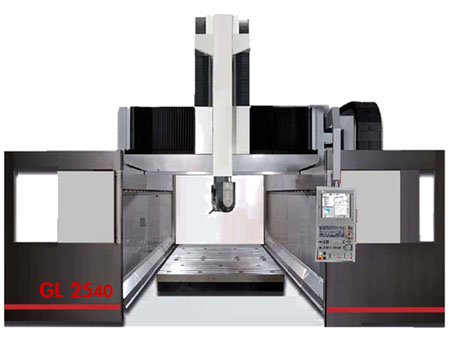

Gantry type column and base
Column and base fixed on foundation, without loading issue and increase machining accuracy.
Double ballscrews and double servo motors
High accuracy, High reaction, High speed.
Heidenhain linear scale
3 axes with Heidenhain linear scale to increase moving accuracy and reduce machining error.

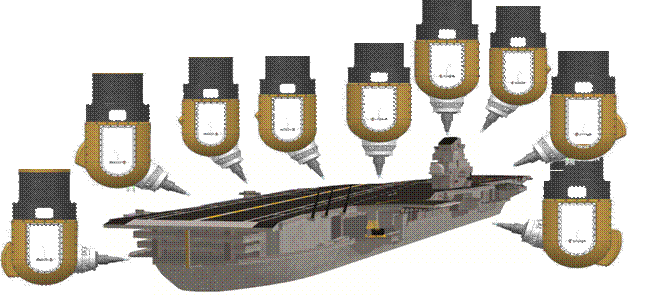

B/C axes with ring scale
Regulate swivel and tilt angle effectively.
Mechanical anti-collision device
3 axes with anti-collision device to reduce machine failure.
Axes with cooler
Regulate moving temperature any time.
Spindle cooler
Temperature control within 0.1 degree.
XY axes with linear motor
Rapid traverse 70 m/min, cutting feed rate 20m/min, rapid without back clearance.
Without interval gap between ballscrew and gear.
Direct-drive without other medium.
TCPM multi-axes synchronous control
Tool center management, reduce extra motion.
-
|
Travel |
Unit |
GL25xx |
|
X axis travel |
mm |
4000/6000/8000+ |
|
Y axis travel |
mm |
2500 |
|
Z axis travel |
mm |
1100 (opt:1400) |
|
Dist. between spindle nose to table |
mm |
250~1350 |
|
Distance between columns |
mm |
3500 |
|
Table |
||
|
Dimension |
mm |
4000/6000/8000+ x 2500 |
|
Max Load |
Kg/m2 |
5000 |
|
Spindle |
||
|
Type |
|
Built-in |
|
Max. spindle speed |
rpm |
24000 |
|
Spindle motor power(cont. /S6) |
kW |
37/46 |
|
Spindle motor torque(cont./S6) |
Nm |
60/73 |
|
Spindle taper |
|
HSK-A63 |
|
C/B axis |
||
|
Max. swivel speed C/B |
rpm |
30/30 (opt:50/50) |
|
Max. torque C/B |
Nm |
1100/575 |
|
Clamping torque C/B |
Nm |
1680/2160 |
|
Swivel angle C/B |
degree |
±200/±105 |
|
Feedrate |
||
|
Rapid traverse rate (X/Y/Z) |
m/min |
60/60/32 |
|
Cutting feed rate (max) |
mm/min |
1-20000 |
|
ATC & Maganize |
||
|
ATC Type |
|
Armless |
|
Max. tools |
pcs |
30 |
|
Max. diameter(next empty) |
mm |
100/180 |
|
Max. length |
mm |
300 |
|
Max. weight |
kg |
7 |
|
Tool shank |
|
HSK-A63 |
|
Space & System Requirement |
||
|
Pneumatic pressure |
Kgf/cm |
7 |
|
Hydraulic pressure |
Kg/cm2 |
90 |
|
Electrical power consumption |
kVA |
150 |
|
Max. floor space(W*L*H) |
mm |
11000/13000/15000+ *7600*5500 |
*Specifications are subject to change without notice.
|
STANDARD: |
OPTIONAL ACCESSORIES: |
|
Ÿ HEIDENHAIN
TNC 7 / TFT 19" LCD Ÿ Ethernet
card, USB &RS-232C Interface Ÿ Fully
enclosed splash guard Ÿ Spindle
cooler Ÿ 3 axes
absolute encoder motors/XY Linear motor Ÿ ATC Ÿ 3 axis
linear guide way Ÿ Coolant
tank and coolant flushing system Ÿ Centralized
automatic lubrication system Ÿ Spindle
air blast Ÿ Working
lamp Ÿ Indication
lamp Ÿ Anchor
bolts, leveling blocks and bolts Ÿ Tool kits Ÿ Washing
gun and air gun Ÿ Cutting
coolant system Ÿ Cutting
air blast Ÿ Operation
manuals |
Ÿ Built-in/Direct
type high speed spindle Ÿ FANUC
Controller Ÿ Linear
scales(3 axes) Ÿ Tool length
measurement system(Blum) Ÿ Workpiece
measurement system Ÿ Automatic
lubrication system(Grease) Ÿ Oil mist
cutting system Ÿ Transformer
and regulator Ÿ Oil mist
collector Ÿ CTS Ÿ Steel belt
type chip conveyor Ÿ 4th
axis Ÿ
Oil skimmer |

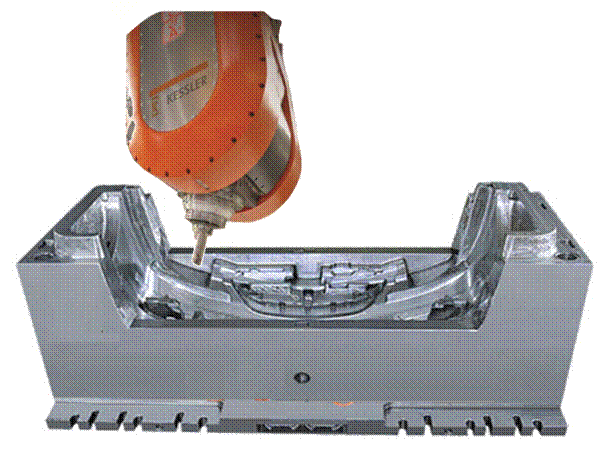

■ 5-axis simultaneous movement, increase the molds and parts machining performance
